Measuring a box sounds simple until the box has to close, stack, ship and repeat the same fit across hundreds or thousands of units.
The mistake I see most often is starting from the outside of an existing box or sending a supplier three numbers without saying what those numbers represent. A measurement can be perfectly accurate and still produce the wrong packaging if it is the wrong measurement.
At Custom Packly, I treat box sizing as a product-fit problem first. The product, insert, board, closure, packing method and delivery route all influence the final dimensions. That is why made-to-order custom packaging should be specified around the complete packed product rather than a convenient stock size.
The short version is this: measure the packed product, decide whether the dimensions you are giving are internal or external, add only the clearance the structure needs and validate the final fit before bulk production.
Start With the Packed Product, Not the Empty Box
The first measurement should come from what will actually go inside.
That sounds obvious, but “the product” is often not the same thing as “the packed product”. A bottle may gain a pump, cap, tamper seal or protective sleeve. A jar may sit in a cardboard cradle. A watch may be presented around a cushion. A candle may be wrapped before it enters the carton. A set may contain a leaflet, accessory and insert that together determine the real footprint.
I would rather receive measurements from the complete packing arrangement than precise measurements from a bare product that will never enter the box in that state.
For product-led projects, custom product packaging starts from dimensions, weight, shape, orientation, fragility and the way the item will be packed.
Before you record any numbers, confirm:
A box measured around an incomplete packing arrangement is already wrong before the dieline exists.
Use One Dimension Order Every Time
Length × width × height is the safest convention for most rectangular boxes, but the labels matter more than the letters.
Do not send “100 × 70 × 40 mm” and assume everyone will interpret the three sides exactly as you do. State the order.
Length
I normally treat length as the longest dimension of the main opening or footprint.
For a folding carton lying flat on its base, that is usually the longer horizontal side. For a mailer, it is normally the longer side of the opening.
Width
Width is the shorter side of the main opening or footprint.
This is sometimes called breadth or depth by different suppliers, which is exactly why written labels are safer than relying on convention.
Height
Height is the distance from the base to the top of the closed box.
For some carton styles, the word depth is used instead. I do not care which word is preferred as long as the drawing or quotation makes the measurement unmistakable.
My preferred notation is simple:
That removes a surprisingly common source of errors.
Internal and External Dimensions Solve Different Problems
Internal dimensions describe the usable space inside the finished box.
External dimensions describe the outside footprint of the assembled box.
They are not interchangeable.
If you are deciding whether a product fits, the internal dimensions matter.
If you are calculating parcel size, shelf footprint, master-carton capacity, pallet layout or warehouse space, the external dimensions matter.
The two measurements are separated by the material and the structure. A thin folding carton may show only a small difference. A corrugated shipping box or rigid box can create a much larger difference because the walls are thicker.
This is why I never accept “box size” as a complete specification. I want to know which size.
A made-to-measure box should have the measurement basis recorded on the quote, dieline or specification so that the same size can be reproduced later.
Internal Dimensions Are About Fit
Internal dimensions tell you how much usable space remains after the board has been converted into the finished structure.
They are where I start when the key question is:
Will the product actually go in, close properly and come back out without being crushed or jammed?
External Dimensions Are About the Finished Footprint
External dimensions tell you how much physical space the box occupies once assembled.
That matters when:
If a courier limit is important, tell the packaging supplier before the structure is finalised. Designing the perfect internal fit first and discovering later that the finished box crosses a parcel threshold is avoidable.
Product Size Is Not Finished Box Size
A product that measures 100 × 60 × 30 mm does not automatically need a box with internal dimensions of 100 × 60 × 30 mm.
That is zero-clearance thinking.
Real packaging needs space for insertion, removal, board movement, manufacturing variation and any additional components inside the pack.
The amount should not be guessed from one universal formula.
A smooth, rigid product entering a simple paperboard carton may need very little extra room. A ceramic jar entering a fitted insert has a different requirement. A folded garment changes shape. A glass bottle with a fragile pump may need controlled space around the vulnerable top. A multi-item set may need enough separation to stop the products contacting each other.
The right question is not “How many millimetres should I add?”
The better question is “What does the extra space need to do?”
Clearance Has a Job
I divide clearance into three practical types.
Packing Clearance
Packing clearance gives the person or machine enough room to load the product without forcing it.
If the fit is too tight, the carton may scrape the product, bow at the sides or slow down packing. A size that works when one careful person assembles a sample can become a problem when a team is packing hundreds of units.
Structural Clearance
Structural clearance allows the box itself to close and move as designed.
Tuck flaps, dust flaps, corrugated wings, roll ends, rigid lids and insert edges all occupy space or follow a closing path.
For a winged mailer, for example, the side wings need a clear route as the lid closes. Tuck Top Mailer Boxes show why a neat internal fit still has to respect the closure.
Protection Clearance
Protection clearance is deliberate space used by an insert, pad, wrap or cushioning feature.
This space is not waste. It is part of the protective system.
The problem begins when a box contains empty space that performs no useful job. Uncontrolled empty space lets products move, increases material use and can make the pack larger than it needs to be.
If you are sizing a folding carton specifically, What Size Tuck Box Do I Need for My Product? goes deeper into tuck flaps, inserts, board thickness and the physical prototype test.
A Carton That Looked Right but Barely Closed
One packaging failure I have seen started with dimensions that looked completely reasonable on screen.
The product measurements were correct. The dieline was clean. The artwork sat in the right places. The 3D view looked finished.
Then the physical sample arrived and the product could barely be inserted. Once loaded, the side panels were under tension and the closing flap no longer behaved naturally.
The problem was not the artwork. The carton had been sized too close to the bare product dimensions.
That experience is why I do not approve fit from a digital mock-up alone.
Digital files are excellent for checking layout, panel order, artwork placement and general structure. They cannot reproduce every physical effect of board thickness, crease behaviour, product friction and packing pressure.
A box is ultimately a three-dimensional manufactured object. The final fit has to work in three dimensions.
Inserts Change the Box Geometry
An insert is not something I add after the box size has already been decided.
The insert and the outer box should be developed as one system.
Inserts and Dividers can hold products in position, separate components and reduce movement, but the insert itself needs space.
A fitted insert introduces several measurements:
For a bottle set, I want to know the bottle diameter, the widest point of the cap or pump and how far the insert should support the bottle vertically.
For jewellery, I want the finished presentation position, not just the loose item dimensions.
For electronics, I want to know whether cables or accessories sit beside, below or above the main product.
The arrangement decides the box footprint.

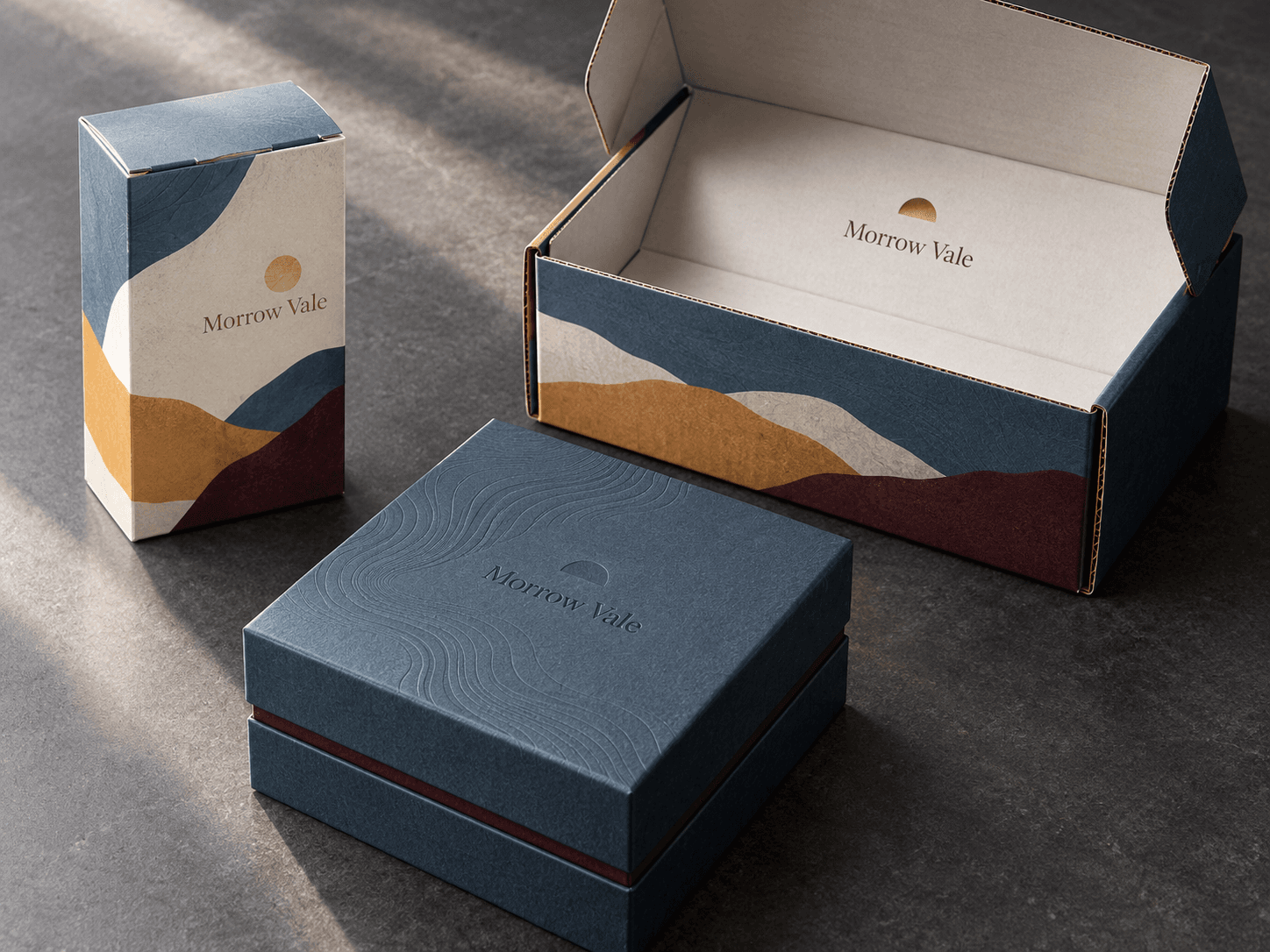

Board Thickness and Structure Change the Calculation
The same internal dimensions can produce different external dimensions depending on the material and box construction.
That is why material choice cannot be separated completely from sizing.
Folding Cartons
Paperboard folding cartons use relatively thin material, but folds, glue seams and tuck closures still need physical space.
If the product is dimensioned to the cavity with no allowance, the carton can become tight at the creases even though the flat dieline looks mathematically correct.
Corrugated Boxes
Corrugated board adds flute depth between the liners.
That makes internal and external size more noticeably different.
It also means a change in board grade or flute can affect the finished outside size even when the intended internal cavity stays similar.
For standard transport cartons such as Regular Slotted Containers, internal dimensions are often the most useful starting point because the products must fit the usable cavity. The finished outside size still needs checking for storage, pallets and transport.
Rigid Boxes
Rigid board can add substantial wall thickness, especially in lid-and-base, shoulder-neck or wrapped structures.
A rigid lid may also need enough tolerance to slide over the base without binding.
That interaction is different from a folding carton and different again from a corrugated shipper.
Paperboard vs Corrugated vs Rigid Packaging separates the jobs these materials perform and includes a real ecommerce case where structure, protection and storage changed the final packaging direction.
The Skincare Project That Proved Empty Space Is Not Neutral
A skincare project reinforced another point for me: space inside a box has consequences.
The original pack used a premium rigid presentation box for a set containing glass and ceramic products. It looked excellent, but ecommerce exposed weaknesses. Breakage reached about 7%, the assembled rigid boxes consumed warehouse space and the presentation box still needed protective wrapping and another corrugated carton for delivery.
The revised pack used a premium micro-flute corrugated mailer and a fitted insert that controlled the products inside.
Breakage moved to 0% during the measured period, packing time was roughly halved and the client could store about five times as many unassembled boxes in the same footprint.
The lesson was not simply “corrugated is better”.
The useful lesson was that outer dimensions, internal movement, insert geometry, storage and packing speed were connected.
A box can be structurally strong and still fail because the internal space is poorly controlled.
Measure Irregular Products at Their Widest Real Point
Irregular products need more care than neat rectangular objects.
Do not measure the part that is easiest to reach. Measure the true maximum envelope of the packed item.
That may include:
For round products, record the maximum diameter and the full height.
For tapered products, record both the widest and narrowest points if the taper affects an insert.
For soft goods, measure them in the actual folded and packed state. Do not pull fabric tight on a table and use the smallest possible measurement unless the production packing method will recreate that compression consistently.
Multi-Product Sets Need Arrangement Before Dimensions
A gift set cannot be sized properly until the layout is decided.
If three products can sit side by side, stacked in two layers or arranged around a central item, each option produces a different box.
I normally decide the presentation before finalising the dimensions.
Ask:
The most compact arrangement is not automatically the best one. A few millimetres saved in footprint can be a poor trade if packing becomes slow or the products become difficult to remove.
External Dimensions Matter for Shipping and Storage
Product fit is only half the sizing decision.
The assembled box also has to exist inside a commercial system.
External dimensions affect:
This is where oversizing becomes expensive.
A box that is 20 mm too large in one direction may not sound serious in isolation. Repeat that across thousands of units and it can increase board consumption, filler use, case size and storage volume.
I do not chase the smallest possible box. I chase the smallest box that still packs efficiently, protects the product and closes without strain.
That distinction matters.
Do Not Design at Zero Tolerance
Products vary.
Boxes vary.
The cutting, creasing, folding and gluing processes introduce normal manufacturing variation. Bottles from different production batches may not be identical. A hand-packed textile may not fold to the exact same thickness every time.
If the design works only when every component lands on one perfect nominal measurement, the specification is fragile.
I prefer controlled tolerance rather than zero tolerance.
That does not mean adding generous empty space everywhere.
It means identifying where variation is likely and allowing enough room for the pack to work consistently.
For repeat production, this becomes especially important. The first run should create a specification that can be reproduced, not a one-off fit that depends on unusually careful packing.
Measure Before You Build the Dieline
A dieline should come after the important dimensions are settled.
The safest order is:
Once those decisions are clear, the free dieline generator can create supported box templates from your own dimensions.
Packaging Dielines: Cut, Crease, Bleed & Artwork covers what the flat production file controls after the measurements are locked.
I would not use a dieline as a substitute for sizing work. A precise dieline built from the wrong dimensions is still wrong.
A Physical Sample Is the Final Fit Test
I treat the physical sample as the final authority on fit.
The sample should be packed exactly as production units will be packed.
Use the real product.
Use the real insert or the closest production-equivalent version.
Add the leaflet, cable, protective wrap or accessory if it will be present in the finished order.
Then check more than whether the product technically fits.
Check Insertion
Can the product be loaded without forcing, scraping or deforming the box?
Check Closure
Do the flaps, lid or wings close naturally?
Is anything pushing against the closure?
Check Movement
Does the product slide, rotate or strike another component when the closed pack is handled normally?
Check Removal
Can the customer remove the product without tearing the box or struggling with the insert?
Check Repeatability
Can another person pack the same sample to the same standard without being coached?
That last test matters more than it looks.
Packaging that works only for the person who designed it is not ready for production.
Common Box-Measuring Mistakes
Most size problems come from a small number of repeated mistakes.
Measuring an Old Box and Assuming It Is Correct
An existing box may already be oversized, undersized or designed for a different board.
Use it as a reference, not as unquestioned truth.
Measuring the Bare Product
Caps, pumps, wraps, inserts and accessories can change the required cavity.
Measure the production packing arrangement.
Mixing Internal and External Dimensions
This can create a box that is too small for the product or too large for a shipping limit.
Write the measurement basis clearly.
Reversing Width and Height
Three unlabeled numbers are an invitation to misinterpretation.
Use words as well as figures.
Adding Clearance Everywhere
More space is not automatically safer.
Space should support packing, structure or protection. Otherwise it may simply create movement.
Ignoring the Closure
A product can fit inside the cavity and still block dust flaps, wings or a rigid lid.
Check the closing path.
Finalising Artwork Before Size
A dimension change can alter every panel on the dieline.
Lock structure and size before finishing artwork.
Skipping the Physical Sample
A screen cannot reproduce every physical interaction between product, board, insert and closure.
Test the real thing.
What to Send Before Requesting a Quote
A useful packaging brief should make the measurements impossible to misunderstand.
Send:
If you are unsure about the final box dimensions, send the product information first rather than inventing a finished size.
That gives the packaging team something useful to work from.
My Box-Sizing Decision Sequence
When a project arrives with incomplete measurements, this is the order I use.
Fit Is a Specification, Not a Guess
The best box size is not the tightest box and it is not the biggest box that feels safe.
It is the size that gives the product controlled space, lets the structure close properly, supports the packing process and stays efficient outside the box as well.
That is why I separate product dimensions, internal dimensions and external dimensions from the beginning.
Each measurement answers a different question.
Product dimensions tell us what must be accommodated.
Internal dimensions tell us what space the finished box provides.
External dimensions tell us what the finished pack occupies.
Once those three are clear, clearance becomes a design decision rather than guesswork.
That is the point where box sizing stops being three numbers and becomes a repeatable packaging specification.
